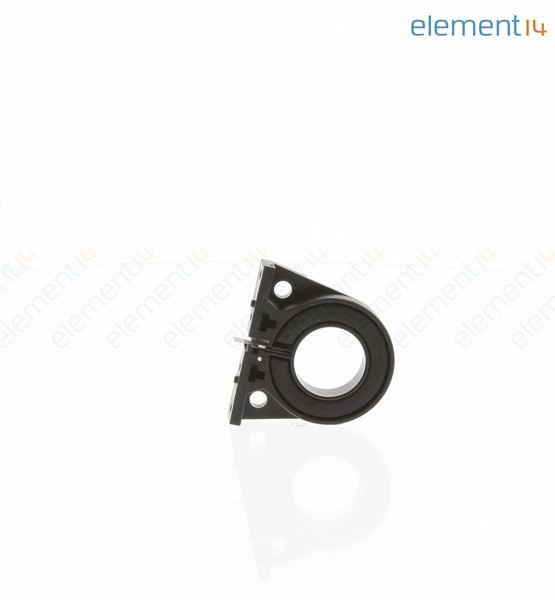

HONEYWELL CSLA2EL

電流 センサ, CSLA シリーズ, リニア, -550A ~ 550A, シンク, ソース 出力, 6 Vdc ~ 12 Vdc

画像は説明用のイメージです。製品説明をご参照ください。

製造業者:
HONEYWELL HONEYWELL
メーカー 部品番号:
CSLA2EL
ご注文 コード:
1703966
  • 上記のテキストボックスにカスタム品番を入力してください
  • 最多の部品番号が追加されました。
    古い項目を削除して新しい項目を追加する。

保存された品番

Part Number Saved

技術データシート:
CSLA2EL   データシート
ECAD / MCAD
Supply Frame Models Link
すべての技術資料を表示する

製品範囲選択 (CSLA Series)

この製品範囲のすべてを表示する

製品概要

The CSLA2EL is an inductive analogue Linear Current Sensor incorporates 91SS12-2 and SS94A1 linear output hall effect transducer (LOHET™). The sensing element is assembled in a printed circuit board mountable housing. This housing is available in four configurations. Normal mounting is with 0.375-inch long 4-40 screw and square nut (not provided) inserted in the housing or a 6-20 self-tapping screw. The combination of the sensor, flux collector and housing comprises the holder assembly. This sensor is ratiometric.
  • Linear output
  • AC or DC current sensing
  • Through-hole design
  • Fast response time
  • Output voltage isolation from input
  • Minimum energy dissipation
  • Maximum current limited only by conductor size
  • Adjustable performance and built-in temperature compensation assures reliable operation
  • Accurate and low-cost sensing
  • -25 to 85°C operating temperature range
  • PBT polyester housing
  • PCB on 3-pin mounting

製品情報

類似製品をご覧になられますか? 下記の必要な属性を選択し、ボタンをクリックしてください ×


:
6VDC to 12VDC

:
6V

:
AC / DC

:
12V

:
-

:
-550A ~ 550A

:
ホール効果

:
-550A ~ 550A

:
550A

:
スルーホール

:
-25°C

:
85°C

類似製品を探す 上記の属性を選択、変更することにより、類似製品が検索できます。

技術文書 (3)

製造終了

¥13,646.83 (¥15,011.51 消費税込み)

価格設定を利用できません。カスタマーサービスにお問い合わせしてください。

価格:
それぞれ
Multiple: 1 最小: 1
  • 1+
  • 5+
  • 10+
  • 25+
  • 50+
  • 100+
数量 価格 (消費税込み)
1+ ¥13,646.83 (¥15,011.51)
5+ ¥12,303.12 (¥13,533.43)
10+ ¥11,150.98 (¥12,266.08)
25+ ¥10,517.18 (¥11,568.90)
50+ ¥10,056.87 (¥11,062.56)
100+ ¥9,630.22 (¥10,593.24)
数量 価格 (消費税込み)

価格設定を利用できません。カスタマーサービスにお問い合わせしてください。

No longer stocked:: No Longer Manufactured::
