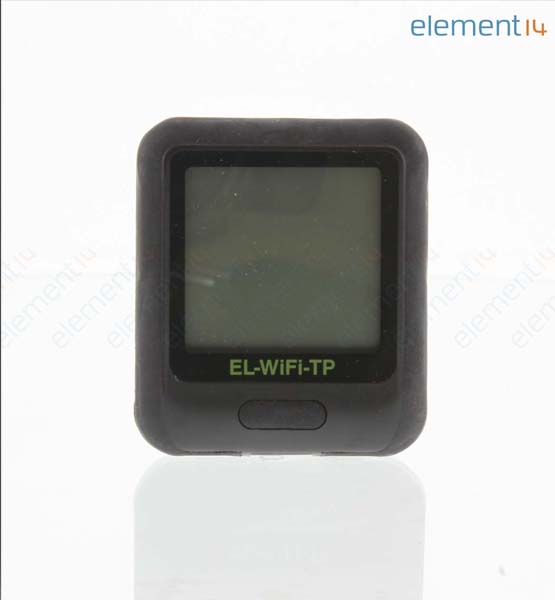

LASCAR EL-WIFI-TP
Data Logger, WiFi Thermistor Probe, 1 Channel, Temperature, WiFi, LCD
- Manufacturer:
- LASCAR LASCAR
- Manufacturer Part No:
- EL-WIFI-TP
- Order Code:
- 2285224
-
-
Maximum Part Numbers added.
Delete older entries to add more.
- Product Range
- EL-WiFi Series
- Technical Datasheet:
- EL-WIFI-TP Datasheet
- ECAD / MCAD
-
Product Range Selector (EL-WiFi Series)
See all from this product rangeProduct Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- WiFi Thermistor Probe
- :
- 1 Channel
- :
- Temperature
- :
- -
- :
- WiFi
- :
- LCD
- :
- EL-WiFi Series
Technical Documents (3)
Product Overview
The EL-WiFi-TP sensor measures the temperature of the environment in which the probe is situated. Data is transmitted wirelessly via a WiFi network to a PC and viewed using a free software package. During configuration the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the PC application (max 120 days at 10 second sample interval).
- Temperature data logging sensor with thermister probe
- WiFi capability and integrated display
- Wireless connectivity to PC via WiFi
- Easy sensor set-up using free PC software
- View and analyse multiple sensors using the PC application, including graphing of historic data
- Measurement range -40 to +125°C (-40 to +257°F)
- 802.11b compliant
- Capable of logging greater than 1 million data entries
- Sensor memory stores all data even if WiFi is temporarily disconnected
- Main unit IP55, probe IP67
- Rechargeable internal lithium polymer battery
- Configurable high and low alarms with indicator
- Max & Min readings
- Low battery indicator
- WiFi connection indicator
- USB port used for recharging
- Supplied with removable thermister probe, micro USB lead & wall bracket
- Fully featured LCD segment display
- USB port used for recharging (can only be recharged when unit is between 0 - 40˚C)
- Firmware upgradable via USB (Downloadable from the Lascar website)
- PC can be switched off without loss of data
Applications
Test & Measurement, Wireless, Signal Processing
Contents
WiFi Temperature Probe Data Logging Sensor
Footnotes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
