FLUKE FLUKE 353
Clamp Meter, Current, Voltage, Frequency, Resistance, 2 kA, 600 V, 1 kV, 400 kohm, True RMS
- Manufacturer:
- FLUKE FLUKE
- Manufacturer Part No:
- FLUKE 353
- Order Code:
- 1503749
-
-
Maximum Part Numbers added.
Delete older entries to add more.
- Technical Datasheet:
- FLUKE 353 Datasheet
- ECAD / MCAD
-
Product Range Selector (350 Series)
See all from this product rangeAlternatives for FLUKE 353
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Current, Voltage, Frequency, Resistance
- :
- 2kA
- :
- 600V
- :
- 1kV
- :
- 400kohm
- :
- True RMS
- :
- Auto
- :
- 3.75
- :
- 58mm
- :
- 350 Series
Technical Documents (1)
Product Overview

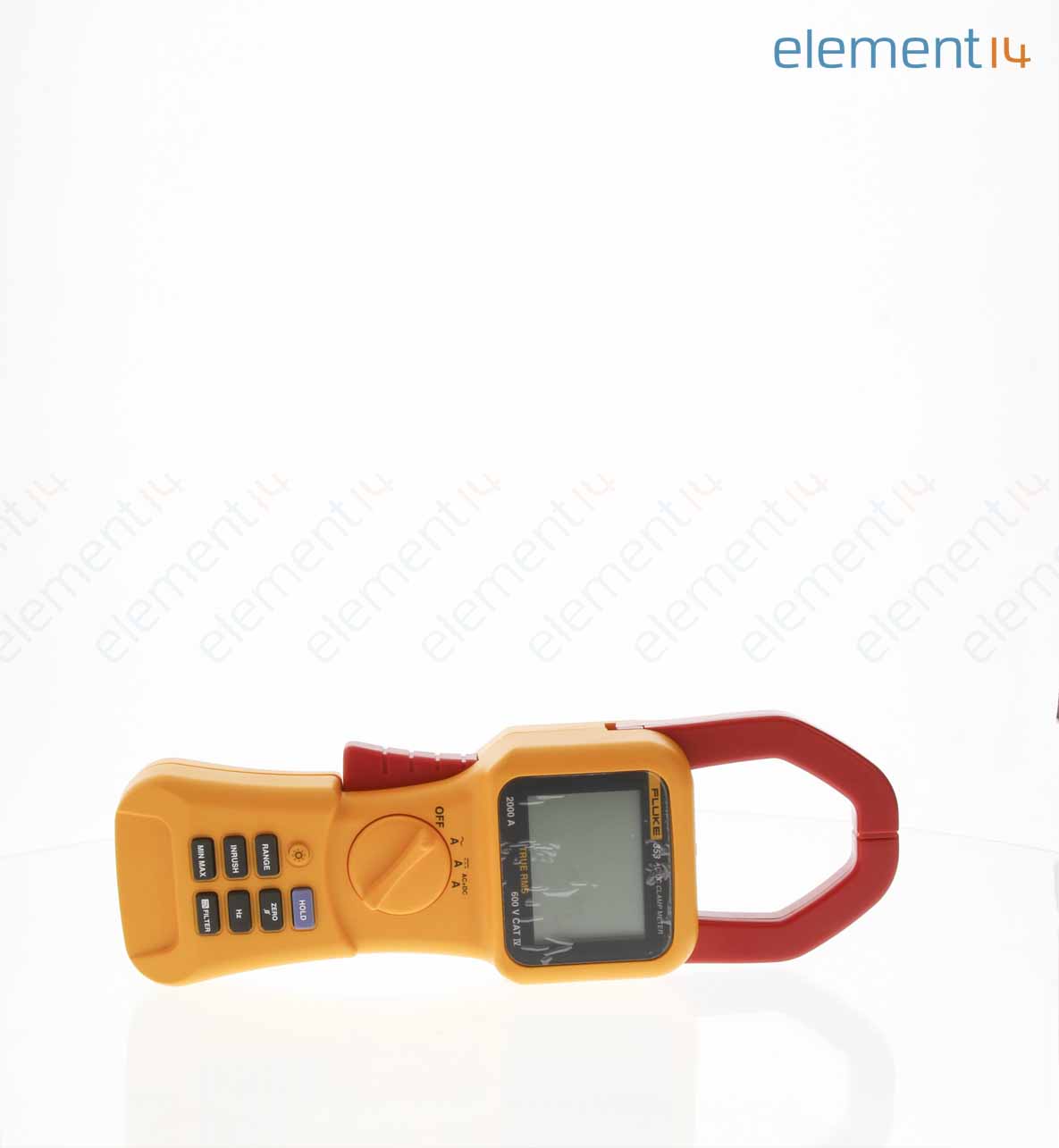

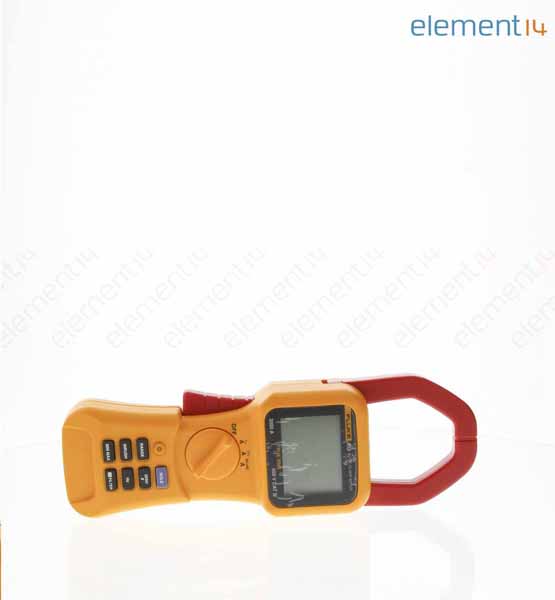

Confidently take reliable readings with the true-rms, the Fluke 353 Clamp Meters; the tools of choice for high current measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high current applications. The rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of protection when taking high-powered measurements. Accurate peak measurements can be taken using the in-rush current mode - ideal for motors and inductive loads.
- Reliably handle a wide range of high-current applications
- The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
- CAT IV 600 V, CAT III 1000 V rating for added user protection
- In-rush current measurement captures 'power-on' surge current with accuracy and repeatability
- Accurately measure frequency up to 1 kHz for optimum troubleshooting
- Quickly analyse readings using the MIN, MAX, and AVG functions
- A large backlit display allows for easy visibility in low-lit areas
- Use the display hold feature to capture readings even when the display cannot be viewed
- Use the low-pass filter to smooth out noisy loads and stabilise readings
Applications
Industrial, Maintenance & Repair, Test & Measurement
Contents
C43 Soft Meter Case, 6 AA batteries, users manual
