ANALOG DEVICES DC607A
Demonstration Board, LTC3722, Full Bridge Controller
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- DC607A
- Order Code:
- 4408379
-
-
Maximum Part Numbers added.
Delete older entries to add more.
- Product Range
- -
- Technical Datasheet:
- DC607A Datasheet
- ECAD / MCAD
-
Product Overview

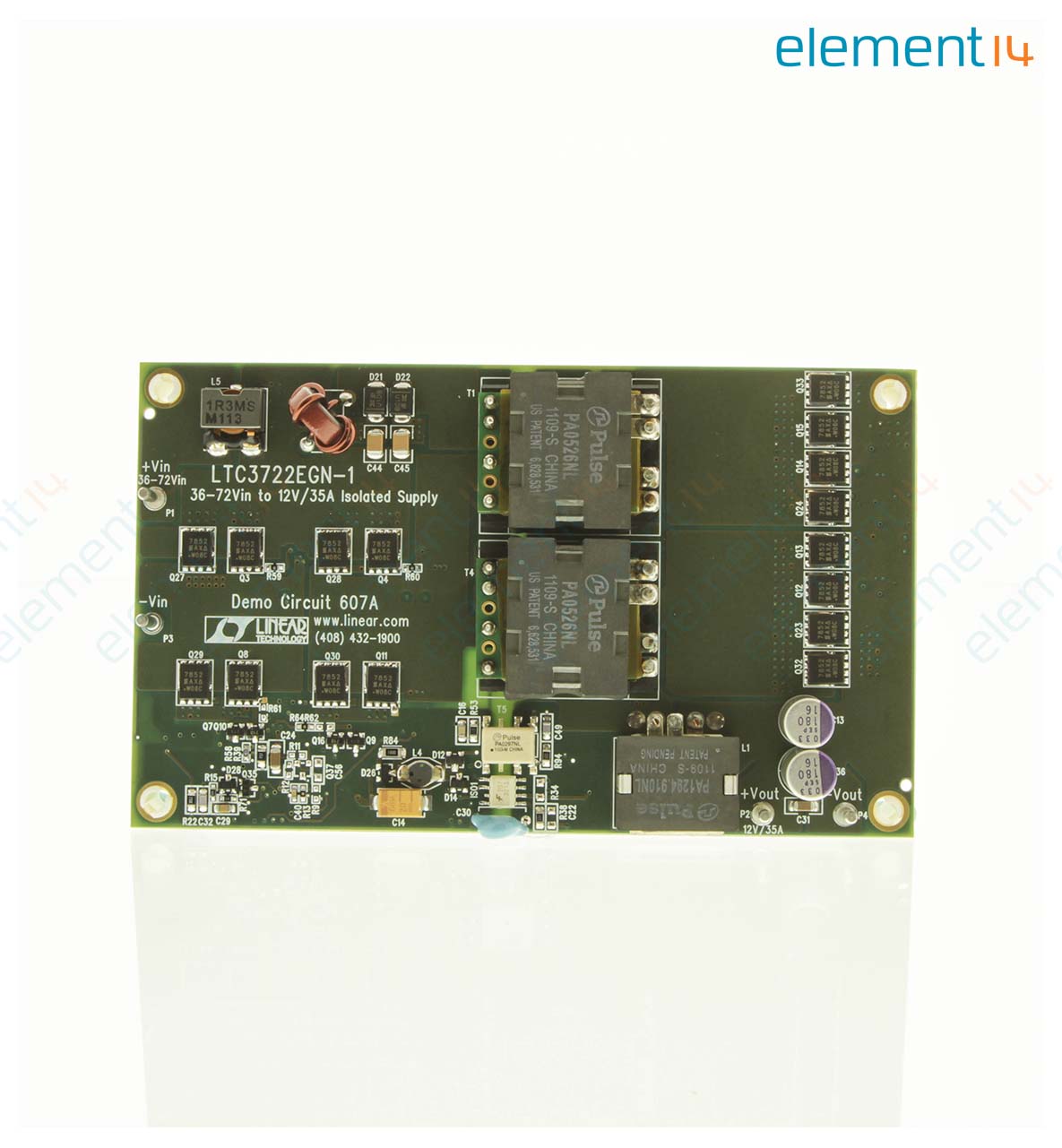

DC607A demonstration circuit is an isolated full-bridge converter featuring the LTC3722, LTC4440, LTC3901, and LT1431. This circuit was designed to demonstrate the phase-shifted full bridge power supply to generate 12V at 35A from a typical telecom input voltage range of 36V to 72V. Isolation voltage is 1500VDC. Fixed zero-voltage transition timing was chosen because of the relatively fast bridge leg transition times with a 48V input. The DC607A PCB layout includes options to implement adaptive timing.
- 35A max output current range at VIN = 48V, 200LFM
- 200KHz nom switching (clock) frequency
- 140mVP-P nom output ripple at VIN = 48V, IOUT = 35A (20MHz BW)
- 1500VDC nom isolation
