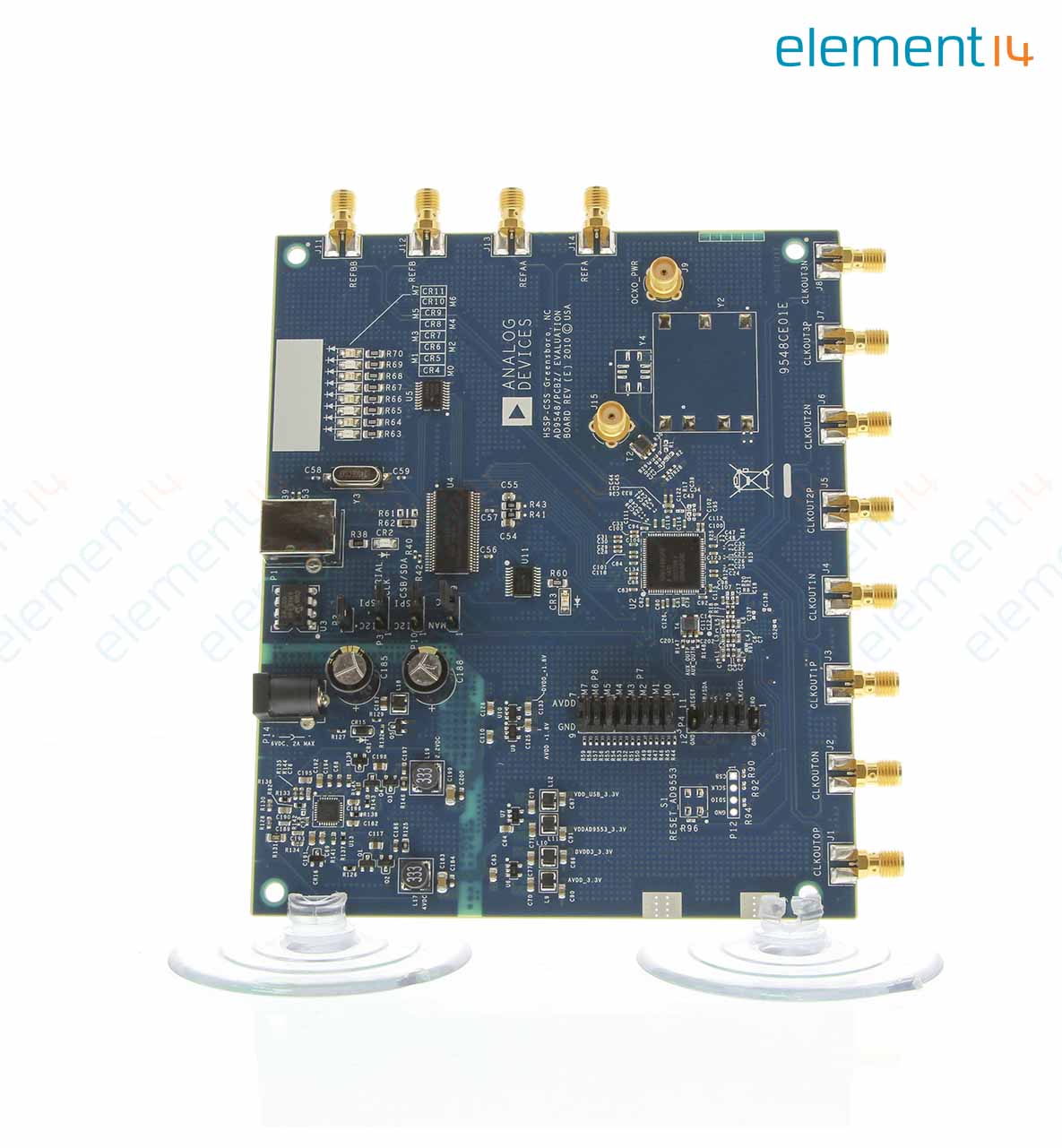

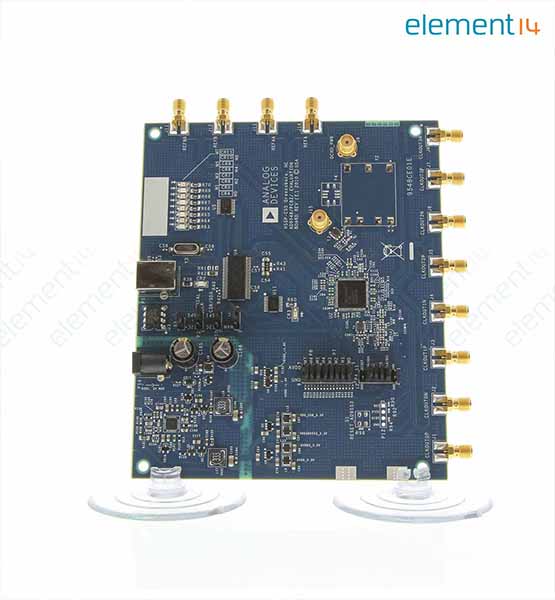

ANALOG DEVICES AD9548/PCBZ
Evaluation Board, AD9548BCPZ, Network Clock Generator/Synchronizer, 6 V Supply
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- AD9548/PCBZ
- Order Code:
- 4032856
-
-
Maximum Part Numbers added.
Delete older entries to add more.
- Product Range
- -
- Technical Datasheet:
- AD9548/PCBZ Datasheet
- ECAD / MCAD
-
Product Overview
AD9548/PCBZ is an evaluation board to evaluate the AD9548 digital PLL clock synthesizer. The AD9548 accepts input reference frequencies as low as 1Hz. Suitable for GPS 1 pps applications (AD9548 only), networking and communications line cards and synchronous equipment timing source (SETS) devices, test and measurement equipment, wireless base stations, controllers, clock clean-up/jitter attenuation applications.
- Simple power connection using 6 V wall adapter and on-board switching and LDO voltage regulators
- Regulators easily bypassed for power measurements
- 8 SC-coupled SMA connectors for output
- On-board provisions for OCXO, crystal oscillator or crystal
- USB connection to PC
- On-board PLL loop filter
- Easy access to digital I/O and diagnostic signals via I/O header
- Status LEDs for diagnostic signals
