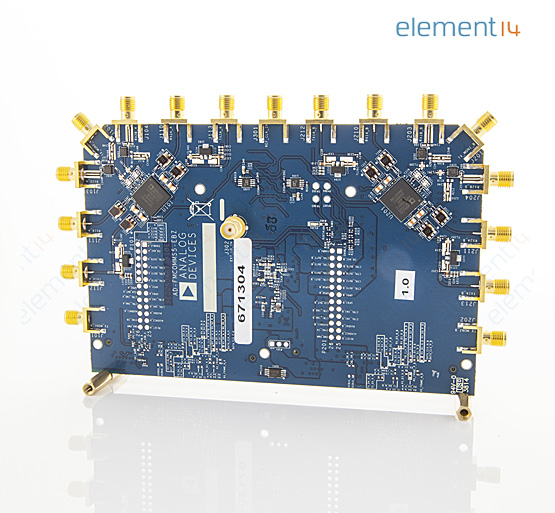

ANALOG DEVICES AD-FMCOMMS5-EBZ
Evaluation Board, AD9361BBCZ, RF Agile Transceiver, Dual
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- AD-FMCOMMS5-EBZ
- Order Code:
- 4033063
-
-
Maximum Part Numbers added.
Delete older entries to add more.
- Product Range
- -
- Technical Datasheet:
- AD-FMCOMMS5-EBZ Datasheet
- ECAD / MCAD
-
Product Overview
AD-FMCOMMS5-EBZ is a RF synchronized 4 x 4 dual AD9361 transceiver evaluation board. The AD-FMCOMMS5-EBZ is a high-speed analog module designed to showcase the AD9361 in multiple-input, multiple-output (MIMO) applications. The AD9361 is a high performance, highly integrated RF transceiver that operates from 70MHz to 6GHz and supports bandwidths from less than 200KHz to 56MHz. The board supports dual AD9361 devices, allowing for the creation of a 4 x 4 MIMO system. This platform is intended to enable prototyping and development of many software defined radio applications, such as active antennas, transmit beamforming and receive angle of arrival systems. Board has both wideband channels covering the full 6GHz range, as well as narrowband channels matched to 2.4GHz. Suitable for general purpose design suitable for MIMO radio, transmit beamforming and receive angle of arrival detection, point to point communication systems, femtocell/picocell/microcell base stations.
- Full device configuration and calibration control across dual AD9361 devices
- SW tunable across wide frequency range (70MHz to 6GHz) with a Ch bandwidth of
200KHz to 56MHz - Phase, frequency synchronization across both AD9361 devices, create a synchronized 4x4 MIMO platform
- Single external LO source can drive both AD9361s, improving RF performance and easing MIMO design
- Powered by dual FMC connectors, allowing for connectivity with the Xilinx ZC706 platform
- Includes schematics, layout, BOM, HDL, Linux drivers and application software
- Allows high channel density
Contents
AD-FMCOMMS5-EBZ evaluation board, Software.
Footnotes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Analog Devices
- :
- AD9361BBCZ
- :
- RF / IF
- :
- RF Agile Transceiver
- :
- Evaluation Board AD9361BBCZ, Software
- :
- -
Technical Documents (3)
12 In stock
12 deliver in 3-4 business days from our UK warehouse :(UK stock) Order before 17:00 Mon-Fri (excluding National Holidays)
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
3 more will be available on 9/12/25
Extra stock is available upon order to the Supplier Lead Time which is approximately 11/3/25
3 more will be available on 9/12/25
Reserving future stock
12 deliver in 3-4 business days from our UK warehouse
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
