ANALOG DEVICES AD-FMCOMMS4-EBZ

Evaluation Board, AD9364BBCZ, RF Agile Transceiver

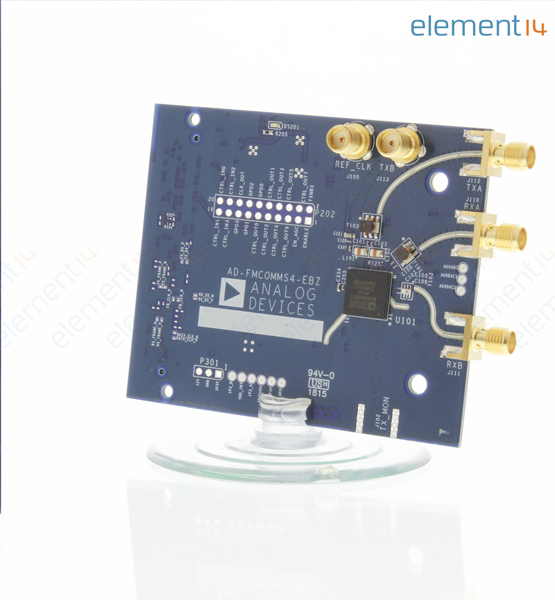

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
AD-FMCOMMS4-EBZ
Order Code:
4033062
  • Enter your custom part number in the textbox above
  • Maximum Part Numbers added.
    Delete older entries to add more.

Part Number Saved

Part Number Saved

Product Range
-
ECAD / MCAD
Supply Frame Models Link

Product Overview

AD-FMCOMMS4-EBZ is an AD9364 wideband software defined radio board. It is also a 1 x 1 transceiver wideband prototyping and RF performance board. The AD-FMComms4-EBZ is an FMC board for the AD9364, a highly integrated RF Agile Transceiver™. The purpose of the AD-FMCOMMS4-EBZ is to provide an RF platform to software developers, system architects, etc, who want a single platform which operates over a much wider tuning range (70MHz – 6GHz). The AD-FMCOMMS4-EBZ board is very similar to the AD-FMCOMMS2-EBZ and AD-FMComms3-EBZ boards with only one exception, rather than the AD9361 (which is 2 Rx, 2 Tx), it uses the AD9364, a lower cost 1 Rx, 1 Tx device. The AD-FMCOMMS4-EBZ includes both types of external baluns, one targeted for wider tuning range applications (Minicircuits TCM1-63AX+) and ones which provide optimized performance for 2.4GHz.
  • Software tunable across frequency range (70MHz to 6GHz) with a channel BW of 200KHz to 56MHz
  • Phase and frequency synchronization on both transmit and receive paths
  • Powered from single FMC connector

Contents

AD-FMCOMMS4-EBZ board, 8GB SD card.

Footnotes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Analog Devices

:
AD9364BBCZ

:
RF / IF

:
RF Agile Transceiver

:
Evaluation Board AD9364BBCZ, 8GB SD Card

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (3)

9 In stock Need more?

9 deliver in 3-4 business days from our UK warehouse

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

¥82,998.59 (¥91,298.45 Inc. JCT)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
  • 1+
Quantity Price (Incl JCT)
1+ ¥82,998.59 (¥91,298.45)
